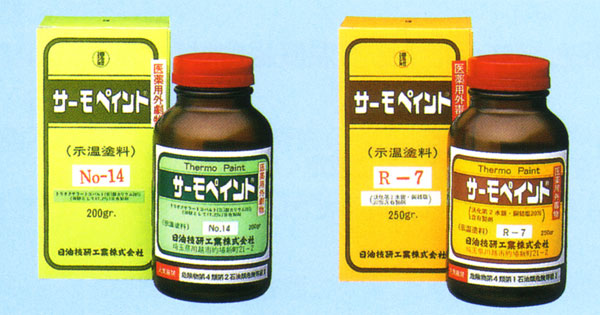

Thermo Paint can be applied by brush or spray to check the temperature of large areas or uneven surfaces. For use with spray, specialized thinner is required.

Reversible
Although the paint color will change above a specific temperature, it will revert to the original color when cooled, enabling one application to be used repeatedly.

• When used on aluminum, special undercoating should be applied. When used on metals other than aluminum, undercoating should be applied.
• If the last coating varnish is used, the durability, the chemical resistance and gas resistance will be improved.
• Approx. 140 to 160 g will be required per square meter in brush painting.
• When R-5 is exposed to direct sunshine, the color may get blackish slightly, which, however, will not adversely influence the performance.
• The color will change from a lower temperature color to a higher temperature color with an accuracy of +/-2 ^oC and from a higher temperature to lower temperature at temperature 15 ^oC lower than the specification.

Number	Color Change Temp (oC)	Lower Temp. Color	Higher Temp. Color
§R-4	40	Reddish Yellow	Reddish Orange
§R-5	50	Yellow	Yellowish Orange
§R-6	60	Bright Yellowish Red	Dark Brownish Purple
§R-7	70	Red	Dark Brownish Purple

250 g/bottle
Accuracy +/- 2^oC
§Designated a toxic substance outside medical use.(Based on Japanese domestic law.)

*Accessories

Undercoat for reversible paint		100 g/can
Special undercoat (set)	Base	150 g/can
	Hardening agent	50 g/can
Thinner for reversible paint		200 g/can
Varnish for reversible paint		100 g/can

---

Semi-Irreversible Indoor Use Only		Irreversible Indoor Use Only
The paint color will not revert to its original color by cooling, but by moisture.		The color will change clearly as the temperature rises and will not revert to the original color .

• The temperature of color change is dependent on such factors as heating speed, heating time, pressure, reactive gas and so on. Please refer to the tables at the bottom.
• The volume to be required will be approx. 80 to 100 g per square meter. It will take four to five minutes at normal temperature for the paint volume to get dried.
• Semi-irreversible type is not suitable to repetitive use.
• The temperature indicating materials of irreversible type may change the color during the transportation, depending upon season, destination and handling.


	Number		Color Change Temp (oC)	Original Color	Signal Color
Semi- Irreversible	No. 5		50	Pale Pink	Bright Blue
	No. 7		70	Pale Pink	Bright Bluish Purple
	No. 8		80	Pale Pink	Bright Purple
	No. 9		90	Pale Pink	Bright Purple
	No. 11		110	Pale Green	Bright Bluish Purple
Irreversible	For lower temp.	No. 13	130	Pale Reddish Purple	Bluish Purple
		#No. 14	140	Bluish Green	Pale Purple
		No. 16	160	Pale Blue	Dark Gray
		No. 18	180	Reddish Purple	Brownish Black
	For higher temp.	No. 20	200	Pale Yellowish Orange	Bluish Purple
		#No. 22	220	White	Grayish Black
		#No. 25	250	Pale Greenish Blue	Reddish Gray
		#No. 29	290	Pale Pink	Black
		#No. 31	310	Bright Bluish Gray	Brownish Black
		#No. 33	330	Pale Bluish Green	Grayish Black
		No. 36	360	White	Orange
		No. 41	410	Blue	Brownish White
		No. 44	440	White	Pale Yellowish Brown
		No. 45	450	Purple	White

200 g/bottle
# Designated a toxic substance outside medical use.

*Accessories

Thinner for irreversible lower temperature and semi-irreversible paint	200 g/can
Thiner for irreversible high temperature paint	200 g/can

* Applications : Electric power equipment, mechanical equipment, heating apparatus, electronic components, etc.

Cautions for Use

Keep away from flame. Clean an area before paint is applied on it. Stir the paint with a fine stick before use. The pigments may be setteled down. The paint viscosity is adjusted for brush painting. When the viscosity gets too high for easy painting, re-adjust the viscosity with thinner. If the paint is used for spray painting, add 20% of thinner. The solvent is flammable and volatile. Close a cap of the bottle after use, keep it in the original box, and store the box at a place, cool, dark, well ventilated in order to eliminate a risk of flame. The validity of product quality is one year after shipment from Japan. Thermo Paint cannot be used outdoor and should not contact directly with human, food, kitchenware or tableware.

The temperature, at which the irreversible/semi-irreversible paint color changes, may change depending on time and speed of heating. Please check the following data before selecting the product. The temperatures shown above are reference only and those at which the color change is completed at heating speed of 2 to 3 ^oC/min.

Heating Speed and Temperature of Color Change

When a sample is to be heated to the temperature at which the paint changes the color and when temperature increase is to be monitored, refer to the following :

Type	Product No.	Heating Speed (oC/min.)
		0.5	1.0	2.5	5.0	10.0	20.0
Semi- Irreversible	No. 5	46 oC	48 oC	51oC	53oC	55oC	57oC
	No. 7	68	70	73	75	77	79
	No. 8	78	80	83	85	87	89
	No. 9	88	90	93	95	97	99
	No. 11	108	110	113	115	117	119
Irreversible	No. 13	119	123	128	132	136	140
	No. 14	130	135	141	145	150	155
	No. 16	155	158	162	165	168	171
	No. 18	170	175	181	185	190	195
	No. 20	185	192	201	207	214	221
	No. 22	208	215	224	230	237	244
	No. 25	229	238	249	257	266	274
	No. 29	270	279	291	301	310	319
	No. 31	290	299	311	321	330	339
	No. 33	305	314	326	336	345	354
	No. 36	329	340	354	364	375	386
	No. 41	386	398	414	426	439	451
	No. 44	429	434	441	446	451	456
	No. 45	440	445	451	455	460	465

Heating Time and Temperature of Color change at constant temperature

When your sample is exposed to a constant temperature, refer to the following :

Type	Product No.	Heating Time (sec)				Heating Time (min.)
		2	5	10	30	1	2	5	10	20	50	100
Semi- Irreversible	No. 5	75oC	69oC	65oC	58oC	53oC	52oC	52oC	48oC	47oC	45oC	43oC
	No. 7	114	103	95	82	74	72	71	69	68	66	64
	No. 8	122	112	104	92	84	82	81	79	78	76	74
	No. 9	134	123	115	101	93	91	88	86	84	81	79
	No. 11	156	144	135	121	112	110	107	105	103	100	98
Irreversible	No. 13	165	157	151	141	135	132	128	125	122	118	115
	No. 14	182	172	164	153	145	139	131	126	120	113	107
	No. 16	195	187	181	171	165	161	157	153	149	145	141
	No. 18	230	219	211	198	190	183	173	166	159	149	142
	No. 20	256	243	234	219	210	202	193	185	178	168	160
	No. 22	293	280	270	254	244	234	220	210	201	190	181
	No. 25	338	321	309	289	276	267	254	245	236	221	214
	No. 29	372	355	343	323	308	299	287	278	269	257	248
	No. 31	396	379	367	347	332	323	310	301	292	279	270
	No. 33	411	394	382	362	348	339	326	317	308	295	286
	No. 36	486	458	436	402	378	366	350	338	326	310	298
	No. 41	599	561	532	486	457	435	406	384	371	355	342
	No. 44	579	547	522	483	458	445	428	415	406	395	386
	No. 45	609	497	487	472	462	452	440	430	424	416	410
