  FX-7000ST

  • For use with corrosive gas at high pressure

AC Motor Driven



Specifications


Model FX-7000ST
Maximum flow rate L/min 70.0 minimum
Maximum discharge kPa (kgf/cm²) 294 (3.0) minimum
Maximum vacuum kPa (mmHg) - 73 (- 550)
Voltage V AC 100 or 200 (50/60 Hz)
Current A 3.4 (AC 100 V)/1.8 (AC 200 V)
Rotation RPM 1350 (50 Hz)/1610 (60 Hz)
Insulation class E
Ambient temperature °C 0 - 40
Gas contact material PTFE/SUS316/SUS304
Connection Rc 1/4
Weight kg 11.0
Dimensions H×L×W 210×248×130

NB: The specifications are subject to change without a prior notice.

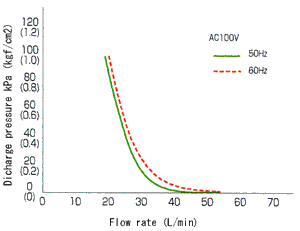

Characteristic Curve

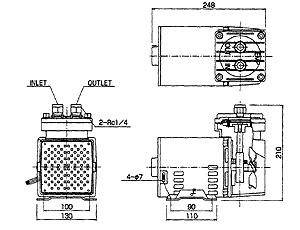

Dimensions (mm)

image image
