  SP Type

Typical Applications


  • Electric power circuits
  • Dummy load
  • Anti-parasitic oscillation circuits
  • PT protection
  • High frequency circuits
  • Ultrasonic devices

Resistor



Descriptions

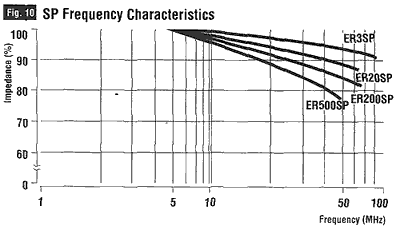

SP, with the inner and outer surfaces coated with a special glass, features higher thermal resistance and larger electric power capacity for the compact volume. Unlike conventional wire wound resistors, the volumetric resistor will provide superior stability versus frequency and higher durability against transient voltage. Further, SP can be water cooled, which enables the resistor to be suitable for the application with large current as well as high frequency circuit.


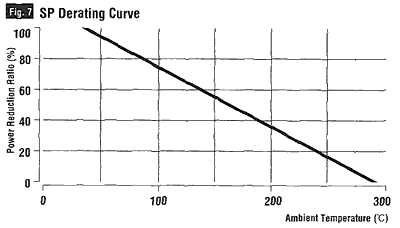

CHARACTERISTICS


Item SP Characteristics
Working temperature: 300 °C
Temperature coefficient: ±0.15%/ °C Max.
Withstand voltage: (1.2×50 µsec) 0.5kV/cm Max.
Load life stability (500h) ±7% Max.
Short time overload: (10 times of rated power for 5 sec) ±2% Max.
Bulk density: 2.0 - 2.4
Specific heat: 0.15 - 0.3 cal/g°C
Max operating temperature: 350°C
Short time allowable injection energy 70J/cc Max.

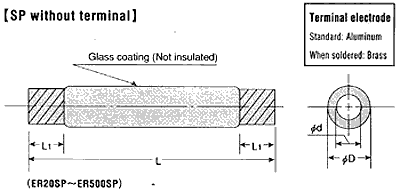

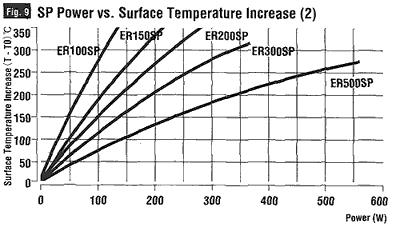

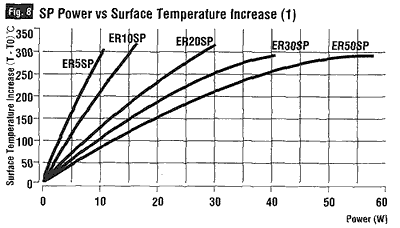

AS STANDARD SPECIFICATIONS


Type No. Rated Power (W) Dimensions (mm) ØD Ø d L L1
ER 3SP 3 4.5±1.0 - 20±1.0 38±2
ER 5SP 5 8.5±1.0 - 25±1.0 38±2
ER 10SP 10 8.5±1.0 - 40±1.0 38±2
ER 20SP 20 14±0.5 8 60±0.8 10±2
ER 30SP 30 14±0.5 8 80±1.0 10±2
ER 50SP 50 20±0.75 14 100±1.0 13±2
ER 100SP 100 20±0.75 14 200±1.2 15±2
ER 150SP 150 25±1.0 18 250±1.5 22±2
ER 200SP 200 25±1.0 18 300±1.5 22±2
ER 300SP 300 40±1.25 32 300±1.5 22±2
ER 500SP 500 50±1.5 40 450±2.0 25±2

Type No. Max Allowable Impulse Voltage (kV) 1.2×50µsec Resistance Value Range (Ohm) Allowable Injection Energy (joule)
ER 3SP 0.5 1.0 - 390 11
ER 5SP 0.5 1.0 - 150 63
ER 10SP 1.0 1.0 - 270 110
ER 20SP 2.0 0.33 - 220 290
ER 30SP 3.0 0.47 - 230 430
ER 50SP 4.0 0.47 - 270 830
ER 100SP 8.5 1.0 - 680 1900
ER 150SP 10.0 0.82 - 470 3400
ER 200SP 12.5 1.0 - 680 4240
ER 300SP 12.5 0.56 - 330 8100
ER 500SP 20.0 0.56 - 330 19800

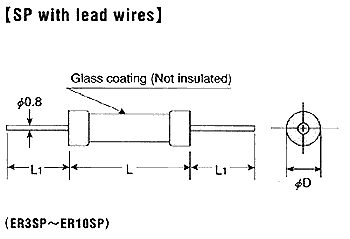

ER3SP through ER10SP will be supplied with lead wires.
ER20SP through ER500SP will be supplied with terminals as option, if so requested with an order.
(The details on the terminals are shown at " STANDARD TERMINALS".


Standard Resistance


While the resistance values available currently are as shown at the above table, thse frequently ordered are now standardized.
The resistors with the standard resistance values will be supplied with a shorter delivery.

SP STANDARD RESISTANCE VALUES


Type No. Standard Resistance (Ohm) Resistance Tolerances ±10%
ER 3SP 4.7 10 22 47 100
ER 5SP 4.7 10 22 47 100 220
ER 10SP 4.7 10 22 47 100 220
ER 20SP 4.7 10 22 47 100 220
ER 30SP 4.7 10 47 100 220
ER 50SP 4.7 10 22 47 100 220
ER 100SP 4.7 10 22 47 100 220
ER 150SP 4.7 10 47 100 220
ER 200SP 4.7 10 22 47 100 220
ER 300SP 4.7 10 22 47 100 220
ER 500SP 10 22 47 100 220

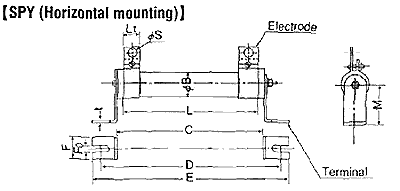

SPY STANDARD SPECIFICATIONS (Horizontal Mounting Type)


Type No. Rated Power (W) Dimensions (mm) Resistance (Ohm)
ØB L L1 ØS C E D F F0 M t
ER 20SPY 20 14 60 9 3.2 70 103 90 16 5.0 16 0.8 1,5,10,20,30,50,100
ER 30SPY 30 14 80 9 3.2 90 123 110 16 5.0 16 0.8 1,5,10,20,30,50,100
ER 50SPY 50 20 100 12 4.2 110 143 130 16 5.0 16 0.8 1,5,10,20,30,50,100
ER 100SPY 100 20 200 12 4.2 210 243 230 16 5.0 16 0.8 5,10,20,30,50,100
ER 150SPY 150 25 250 21 5.2 262 315 300 26 6.2 27 1.0 5,10,20,30,50,100
ER 200SPY 200 25 300 21 5.2 312 365 350 26 6.2 27 1.0 10,20,30,50,100
ER 300SPY 300 40 300 21 5.2 320 380 360 40 10.0 40 1.5 10,20,30,50,100

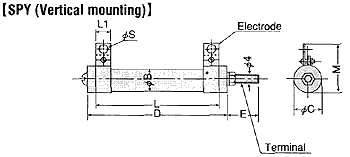

SPT STANDARD SPECIFICATIONS (Vertical Mounting Type)


Type No. Rated Power (W) Dimensions (mm) Resistance (Ohm)
ØB L L1 D ØC ØS M E
ER 20SPT 20 14 60 9 70 16 3.2 31 10 1,5,10,20,30,50,100
ER 30SPT 30 14 80 9 90 16 3.2 31 10 1,5,10,20,30,50,100
ER 50SPT 50 20 100 12 110 22 4.2 42 10 1,5,10,20,30,50,100
