  Internal Mechanism & Dimensions for Metering Flow Model

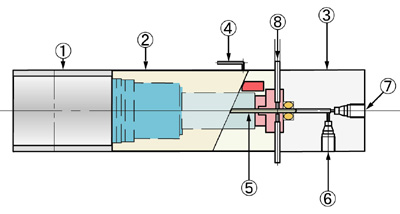

 Internal Mechanism


① Motor unit
② Driving unit
③ Pump head
④ Benchmark sensor
⑤ Plunger
⑥ Tubing port 1
⑦ Tubing port 2
⑧ Plunger seal wash port
TS Pump Internal Mechanism

 Dimensions

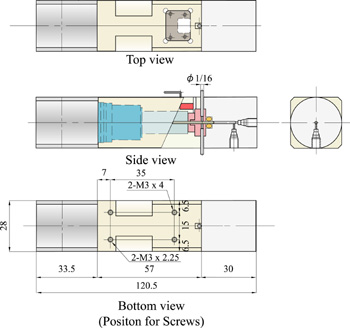

TS-MP18, MP22, MP32, MP45, MP55, MP64 & MP78

Dimensions for 28 mm

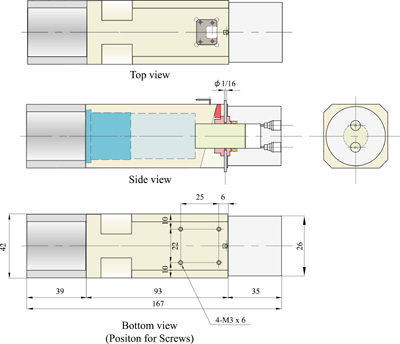

TS-MP100, MP135 & MP160


Dimensions for 42 mm
