Specifications
| Model |
SV-10RRA |
SV-10FFA |
| Maximum flow rate |
L/min |
2 minimum |
1.8 minimum |
| Maximum discharge |
kPa (mmHg) |
6.6 (50) minimum |
| Maximum vacuum |
kPa (mmHg) |
- 6.6 (- 50) |
| Voltage |
V |
AC100, 110, 117, 200, 220 or 240 |
| Current |
A |
0.06 |
| Power consumption |
W |
6 |
| Insulation class |
E |
| Ambient temperature |
°C |
0 - 40 |
| Gas contact material |
CR/PP |
FKM/PP |
| Connection |
Ø6 hose end |
| Weight |
kg |
0.3 |

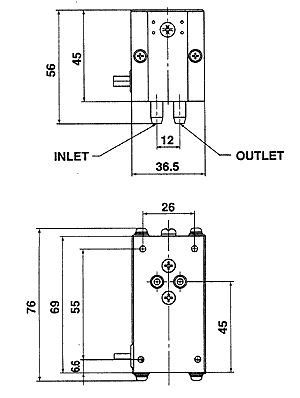

| Dimensions |
H×L×W |
76×56×36.5 |
NB: The specifications are subject to change without a prior notice.
|
