  MV-600G

  • High discharge pressure with space-saving dimensions

Electromagnetic Driven



Specifications


Model Model MV-600G
Maximum flow rate L/min 6.0 minimum
Maximum discharge kPa (mmHg) 42.7 (320) minimum
Maximum vacuum kPa (mmHg) - 40.0 (- 300)
Voltage V AC100, 115, 200, 220 or 240
Current A 0.25
Insulation class A
Ambient temperature °C 0 - 40
Gas contact material CR/PF
Connection Ø6 hose end
Weight kg 0.85
Dimensions H×L×W 128×70×47

NB: The specifications are subject to change without a prior notice.

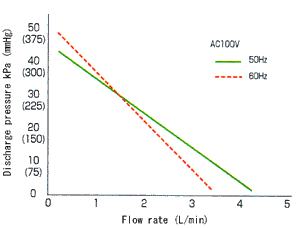

Characteristic Curve

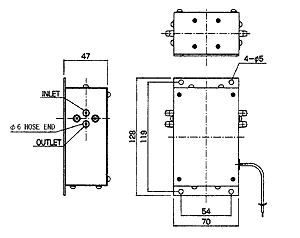

Dimensions (mm)

image image
