Specifications
| Model |
CM-15-3 |
CM-15-6 |
CM-15-12 |
CM-15-24 |
| Maximum flow rate |
L/min |
1.5 minimum |
| Maximum discharge |
kPa (mmHg) |
26 (200) minimum |
| Maximum vacuum |
kPa (mmHg) |
- 26 (- 200) |
| Voltage |
V |
DC3 |
DC6 |
DC12 |
DC24 |
| Current |
A |
0.4 |
0.2 |
0.1 |
0.06 |
| Insulation class |
E |
| Ambient temperature |
°C |
0 - 40 |
| Gas contact material |
CR/PBT |
| Connection |
Ø5.5 hose end |
| Weight |
kg |
0.06 |

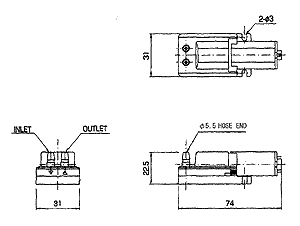

| Dimensions |
H×L×W |
22.5×74×31 |
NB: The specifications are subject to change without a prior notice.
