  CM-50 Series  CM-50-12 CM-50-24

  • Tiny inexpensive components

DC Motor Driven



Specifications


Model CM-50-12 CM-50-24
Maximum flow rate L/min 5.0 minimum
Maximum discharge kPa (mmHg) 40 (300) minimum
Maximum vacuum kPa (mmHg) - 33.3 (- 250)
Voltage V DC12 DC24
Current A 0.35 0.18
Insulation class A
Ambient temperature °C 0 - 40
Gas contact material EPDM/POM
Connection Ø5.5 hose end
Weight kg 0.34
Dimensions H×L×W 63×85.5×69

NB: The specifications are subject to change without a prior notice.

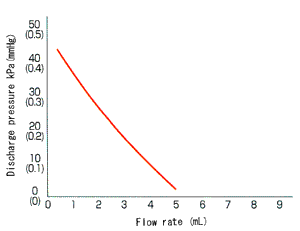

Characteristic Curve

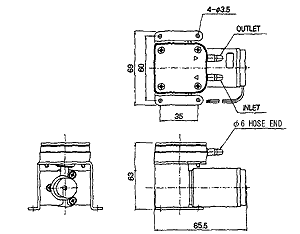

Dimensions (mm)

image image
