This unit can identify the CFC(R12), HCFC(R22), HFC(R32, R125, R134a, R143a)refrigerant components easily in less than 2.5 minutes. It can also evaluate the ratio of mixed refrigerant components, so it is convenient for analyzation and to judge whether the refrigerant is reusable or not. It is small and lightweight, so is very easy to take and carry around. Measurement time is within 2.5 minutes / sample

Objective Refrigerants

Single Refrigerant

Mixed Refrigerant

Instructions

First, put the sample gas into the machine through the port (1/4 FL) Then push the MEAS key and the machine will start.
One can change the indication mode afterwards, but it is better to choose either mode A or B before starting the measurement.
If not chosen, the machine will automatically choose either A or B depending on the measurement results.

This unit does not include a personal computer, printer and cable connector.
The accuracy of the measurement depends on the calibration refrigerant.
The calibration refrigerant is needed for both single and mixed refrigerant.
The calibration is required prior to every analysis of R408A.
Please procure the general grade calibration gases which are sold in sealed packages of disposable cylinders locally.
For the gases other than R408A, the unit has already been calibrated before shipment from Japan.
The unit will switch itself back to AUTO ZERO after each measurement, but please avoid sudden temperature change.
The display is in English.

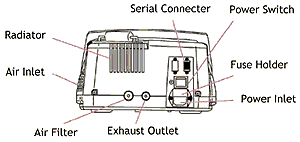

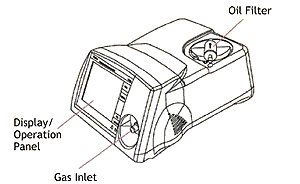

Parts Description and Functions

	MEAS Key Push and the measurement will start
	MODE A/B Key To change the mode display from A to B
	CAL Key To change to calibration selection display
	SPAN SET Key To change the display from the calibration selection display to mixed refrigerant ratio display
	→Key To select calibration gas To select mixed gas ratio To set contrast of the display darker
	↑Key To select calibration gas To select mixed gas ratio and to change the digits in the calibration display To set contrast of the display brighter

Measuring Instructions

MEAS KEY ON

Refrigerant Suction (15 sec)

Refrigerant Measurement (45 sec)

Zero Gas Suction (30 sec)

Zero Gas Measurement (30 sec)

Caliculation (5 sec)

Result (Display)

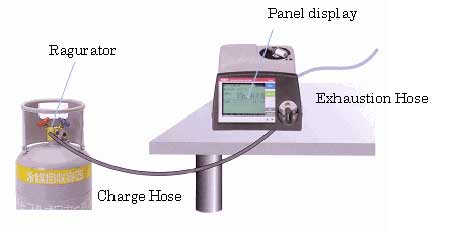

Diagram Showing The Connection with The Unit

Instructions of MODE

MODE A

When the sample is any of the single or mixed refrigerants indicated in the specification,the display will show the mixed ratio or the purity of the refrigerant. (Sample A - 1)
When there are fluorocarbons out of the specifications mixed in the refrigerant, the fluorocarbon will be shown as "OTHERS". (Sample A - 2)

Sample A - 1	Sample A - 2

MODE B

When the sample is mixed refrigerant out of the specification, the ratio of the six fluorocarbon gases in the specification will be shown on the display. (Sample B - 1)
It is possible to change the display from MODE A to MODE B to check the fluorocarbon ratio.(Sample B - 2)

Sample B - 1	Sample B - 2
