| Article Number |
TA400A |
| Measuring Principle |
NDIR (Non Dispersive Infrared Absorption) Method |
| Objective Refrigerant and Range |
Single Refrigerant |
R12, R22, R32, R125, R134a, R143a |
| Mixed Refrigerant |
R404A, R407C, R407E, R408A, R410A, R507A |
| Minimum Display Digit |
0.1 wt % |
| Display |
Liquid Crystal Display |
| Measurement Time |
Within 2.5 minutes / sample |
| Accuracy |
± 0.5 wt % |
| The measurement accuracy digit is the accuracy after the unit is calibrated |
| The measurement accuracy is within the ± 0.5 wt % at most |
| Contamination Display |
Measurable if the purity of the refrigerant is above 98 wt % or if the
discrepancy of the component ratio is within ± 2 wt % |
| When purity is less than 98 wt %, the display will show "CONTAMINATED" |
| Warm-up Time |
5 minutes |
| Influence of Electric Alteration |
± 1 % against ± 10 % of 100 VAC to 230 VAC |
| Inlet |
1/4 FL (5/16 UNF - 20) |
| Amount of Flow |
2l / min (25 °C, intake 40 seconds at 1 atm) |
| Pressure Intake of Refrigerant |
0.3 - 2.5 MPa |
| Operating Temperature |
15 - 35 °C |
| Power Supply |
AC100V ± 10 % (50 / 60 Hz) - 240V ± 10 % |
| Energy Consumption |
About 150VA |
| Operating Humidity |
90 % or lower RH |

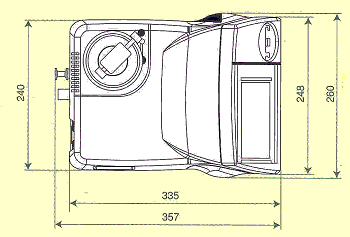

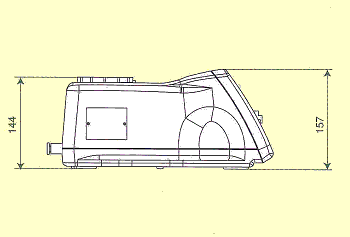

| Outside Measurement |
260 (W)×357(D)×157(H)mm |
| Total Weight |
5 kg |
| Data Input / Output |
Digital Input / Output RS232C Printer Output RS-232 |
| Contents |
TA400A Unit×1 |
| Electric Cord (3 m)×1 |
| Oil Filter×1 |
| Earth (3 m)×1 |
| Cover for Unit×1 |
| Air Cap filter×20 |
| Fuse 2A (T)×1 |
| Regulator×1 |
| Quick Coupler Ball Valve×1 |
| Charging Hose×1 |
| Instruction Manual×1 |
